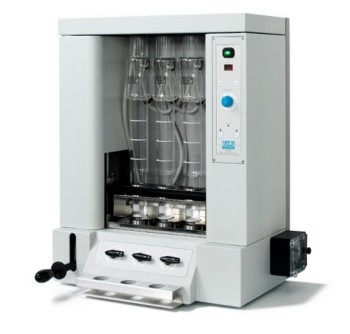

IR0117 RAW FIBRE EXTRACTOR. 3 POSITIONS. VELP FIWE 3 (SA30520201)

IR0117

Raw Fibre Analyser - Crude Fibre, Neutral & Acid Detergent Fibre


FIWE is a fibre analyser suitable for raw fibre extraction, conventionally known as an indigestible residue.



The Weende method is the oldest analytical procedure still in use today, in which fibre concentration is measured as crude fibre (CF).



Weende method has been now largely replaced by the Neutral Detergent Fibre (NDF), a method developed by Van Soest, being now the most common measure of fibre used for animal feed analysis.

It measures most of the structural components in plant cells (including lignin, hemicellulose and cellulose), but not pectin.

Another application is Acid Detergent Fibre (ADF), that is a portion of the plant fibre and includes cellulose, lignin and variable amounts of xylans.


FIWE fibre analyser is also suitable for Acid Detergent Lignin (ADL) determination and Wijkstrom technique, a modification of Weende method.

Raw Fibre Analyser - High Reliability, Single or Multiple Extractions


Perform single or multiple extractions including boiling, rinsing and filtration steps with the maximum reproducibility available.

No sample transfer prevents any possible sample loss, as crucibles can also be used as sample vessels during weighing, drying and washing.

Pre-heat the reagents with RC2 hot plate (included), and pour them directly into the system.

 VELP_FIWE

VELP_FIWE2(1)

Raw Fibre Analyser - Heating element


An extremely efficient heating element speeds up the analysis, ensuring a rapid heating of the sample, previously mixed with pre-heated reagents.

Also after the second reagent addition, the heating element enables a fast re-heating of the solution, for time efficiency.

In fact, FIWE Series drastically reduces the time required for the analysis: the equivalent manual procedure will require more than 6 hours, compared to the 2 hours with FIWE.

Raw Fibre Analyser - Reasons for determining Fibre content

The most significant reasons to test the fibre content are related to:

Nutritional reason


The quantity of fibre is important to keep the digestive system healthy and functional. Too much fibre can cause digestive problems; a low fibre intake irregularities in the functioning of the digestive tract.

Legal reasons


Authorities of most countries require manufacturers of food & feed products to declare the fibre content as part of the nutritional table.

VELP_Chicken_Feed



Pre-heat the reagents with RC2 hot plate (included), and pour them directly into the system.

TECHNICAL DATA

Construction material:

epoxy painted stainless steel structure

Type of extractions:

cold and hot extractions

Number of samples:

FIWE 3 3 positions
FIWE 6 6 positions

Samples:

individually processed

Sample quantity:

air pump

Reagent discharge:

peristaltic pump

Digital timer:

0 - 99 minutes with acoustic signal at the end

Temperature:

electronic regulation

Reagents and cooling water :

separated outlets

Power:

FIWE 3 900 W
FIWE 6 1200 W

Weight:

FIWE 3 35 Kg (77 lb)
FIWE 6 40 Kg (101.2 lb)

Dimensions (WxHxD):

FIWE 3 530x620x390 mm (20.9x24.4x15.4 in)
FIWE 6 760x620x390 mm (29.5x24.4x15.4 in)

PERFORMANCE

Reproducibility (RSD):

± 1%

APPLICATIONS

Raw fibre (Weende, Wijstrom), Neutral or acid detergent treatment fibre (Van Soest), Lignin, Cellulose, Hemicellulose
