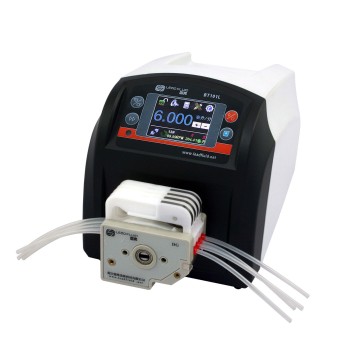

IP0865 PUMP PERISTALTIC,  MODEL BT101L INCLUDES HEAD DT10-28 FLOW RATE 0.0002~82mL/min DUAL CHANNEL

 BT101L-DG-4

BT101L intelligent peristaltic pump provides flow range from 0.0001 to 720 mL/min. It offers not only intuitive and clear interface with color LCD touch screen, but also advanced features such as flow rate calibration and anti-drip function for accurate flow transfer. Easy Dispense Mode is available to dispense the recorded volume by pressing the DISPENSE key or using a footswitch. The system minimizes working noise due to the intelligent cooling fan control. With RS485 MODBUS interface, the pump is easy to communicate with external device, such as PC, HMI or PLC..

SPECIFICATIONS

Flow range:0.0001-720 mL/min
Speed range:0.1-150 rpm
Speed resolution:0.1 rpm
Flow accuracy:0.2%
 Power supply:AC 100-240V,50Hz/60Hz
Power consumption:< 30W
External logic level control signal:5V, 12V (standard), 24V (optional)
Communication interface:RS485 MODBUS interface
Operating condition:Temperature 0-40°C; Relative humidity <80%
Dimensions (L x W x H):257 x 198 x 182mm
