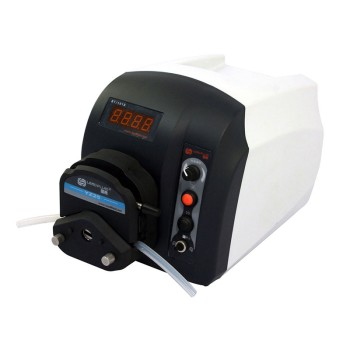

IP0864 PUMP PERISTALTIC, MODEL BT101S, INCLUDES DG6-1 HEAD (6 ROLLERS), SINGLE CHANNEL, 0.00016 - 49mL/MIN

 BT101S-YZ-15-25black

Peristaltic pump BT101S provides flow range from 0.00011 to 720 mL/min with variable pump heads and tubings. It has basic functions such as reversible direction, start/stop, full speed (for fast cleaning), adjustable speed. Dispensing function can easily repeat liquid dispensing by time. With RS485 MODBUS interface, the pump is easy to be controlled by external device, such as computer, human machine interface or PLC.

SPECIFICATIONS

Flow range:0.0001-720 mL/min
Speed range:0.1-150 rpm
Speed resolution:0.1-100 rpm, 0.1 rpm resolution; 100-150 rpm, 1 rpm resolution
Flow accuracy:0.5%
 Power supply:AC 100-240V,50Hz/60Hz
Power consumption:< 30W
External control on/off signal:5V, 12V (standard), 24V (optional). External analog control signal: 0-5V (standard); 0-10V, 4-20mA (optional)
Communication interface:RS485 MODBUS interface
Operating condition:Temperature 0-40°C; Relative humidity <80%
Dimensions (L x W x H):260 x 181 x 198 mm
