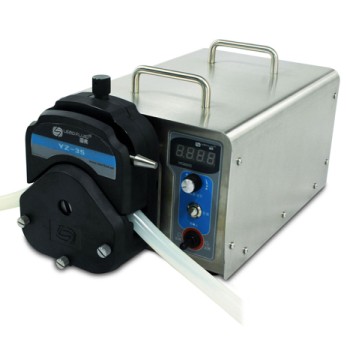

IP0608 WG600S INDUSTRIAL SPEED PERISTALTIC PUMP
|
|
The pump is suitable for transferring large amount of fluid in industry. It provides flow range from 0.4 to 13 L/min. The brush-less motor drive with large torque is maintenance free. It has basic functions such as reversible direction, start/stop, full speed (fast cleaning) and variable speed. With RS485 MODBUS interface, the pump is easy to be controlled by external device, such as computer, human machine interface or PLC.
FEATURES
- Stainless steel housing.

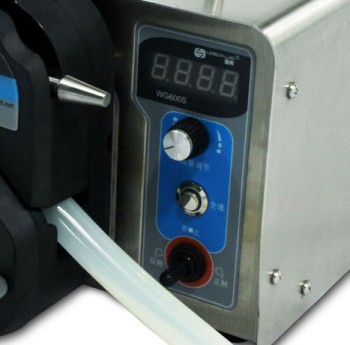

- keypad controls running speed, reversible direction, start/stop, full speed, easy operation.
- Four digits LED indicator displays working speed.
- Brushless motor drive, maintenance free.
- Stainless steel housing, easy to clean, excellent resistance to corrosion of the acid,alkali, sodium and organic solvents.
- The circuit board with conformal coating makes it dust-proof and moisture-proof.
- External on/off voltage signal controls start/stop, reversible direction and easy dispensing function, optically coupled isolator. External analog signal adjusts the rotating speed.
- With RS485 MODBUS interface, easy to be controlled by external devices.
|
|
COMPATIBLE PUMP HEADS
WG600S Applicable Pump Heads and Tubings, Flow Parameters
| Drive type | Pump Head Model | Channel | Tubing size(mm) | Flow Rate (L/min) per channel |
| WG600S | YZ35 | 1 | 73# 82# | 0.4- 13 |
| (304SS) | 2 x YZ35 | 2 | WALL:
0.8-1 ID: ≤3.17 | 0.4- 13 |
| | | | |
IP0608 WG600S INDUSTRIAL SPEED PERISTALTIC PUMP SPECIFICATIONS
| Flow range: | 0.4-13 L/min |
| Speed range: | 30-600 |
| Speed resolution / accuracy | 1 rpm / 3% |
| Power Consumption: | < 400W |
| External analog control signal | 0-5V (standard); 0-10V, 4-20mA (optional) |
| External communication interface: | MODBUS RS485 |
| Ambient temperature / humidity: | 0~40°C; Relative humidity < 80% |
| Relative humidity: | < 80% |
| IP grade: | IP31 |
| Weight: | 0.8 kg |
| Dimension (L x W x H): | 112mm x 96mm x 96mm (4.4 x 3.8 x 3.8 inch) |
