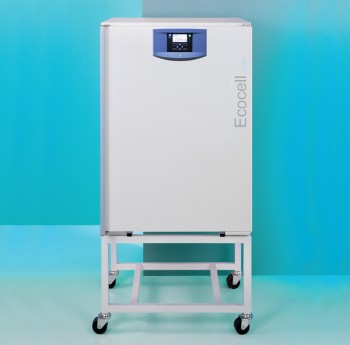

IO0132 OVEN, NATURAL CONVECTION, 'ECOCELL 222 ECO', 222L, AMB+5 TO 250 DEG CELSIUS, INCLUDES 2 CHROME-PLATED TRAYS
 |
The line of economic ovens with wide temperature range, exact and reliable course of simple processes of material heating and drying. The ECOCELL® line is characterised by noiseless operation and slow air flow in usable space.
|
- Intuitive control with smart features
- Multi-lingual language support
- Acoustic and visual alarms with LED status indicator
- 3 inch LCD display (7,6 cm)
- Transflective brilliant FSTN display, using COG technology (backlit with ambient light reflection which increases the displays readability)
- Adjustable display contrast depending on device placement
- Wide angle veiwing
- Large display icons visible at a distance
- Current values (e.g. temperature, humidity) during the device operation are enlarged for easy legibility
- Resistant foil keyboard with SoftTouch surface
- Backlit key symbols
- Keyboard lock to block unauthorised access – adjustable by key combination
- Real time programming and cycling (ramps as optional equipment)
- Integrated datalogger for temperature and relative humidity measurement and recording, with LCD display (optional equipment)
|
 |
|
|
TECHNICAL DATA
| Inner space | volume: L | 111 | 222 |
| width: mm | 540 | 540 |
| depth: mm | 370 | 520 |
| height: mm | 530 | 760 |
External dimensions (including
door, handle, legs N or casters K) | width: max. mm | 760 | 760 |
| | Depth:max. mm | 640 | 790 |
| | height: max. mm | 860N | 1095N |
| | ventilation neck diameter
- internal / external: mm | 52/49 | 52/49 |
| Package – basic package | width: mm | 830 | 860 |
| | depth: mm | 730 | 860 |
| | height (including palette): mm | 1060 | 1260 |
| Package - case | width: mm | 900 | 900 |
| | depth: mm | 800 | 940 |
| | height (including palette): mm | 1090 | 1270 |
| Trays / shelves | maximal number: pc | 7 | 10 |
| | standard equipment: pc | 2 | 2 |
| | minimal distance
trays/shelves: mm | 70 | 70 |
| | usable area | 520×335 | 520×485 |
Maximal allowed loading of trays
*) | per 1 tray: kg | 20 | 30 |
| | per 1 shelf: kg | 20 | 30 |
| | inside the device - in total: kg | 50 | 70 |
| Number of external metal door | pc | 1 | 1 |
| | Weight: net kg | 75 | 100 |
| | Gross(carton) kg | 87 | 116 |
Electric data
– mains 50/60 Hz | max. input: kW | 1.8 | 1.8 |
| | stand by input | | |
| | current for voltage **) A/V | 7.8 / 240 | 7.8 / 240 |
| Degree of coverage | | IP20 | IP20 |
| Temperature data | from 5°C above ambient
temperature: °C | 250 | 250 |
Variations from operation
temperature with closed flap and
door (DIN 12 880 part 2) | space: % temperature | 2.0 | 2.0 |
| | time: ±°C | 0.8 | 0.8 |
| Time to reach temperature of 250°C with closed flap and voltage 230 V | Min | 60 | 99 |
| Number of air exchanges at 250°C | h-1 | 12 | 5 |
| Heat losses | W | 760 | 990 |
|
Note:
All the technical data apply to 22°C of ambient temperature and ± 10% voltage oscillation (unless stated otherwise).
*) The trays may be covered to approximately 50% of their surface and if possibly in such a way so as the air may evenly flow inside the chamber space.
**) Mains voltage is specified on type label of the device.
The values may differ depending on specific charge and media parameters.
Changes in the design and make reserved.
