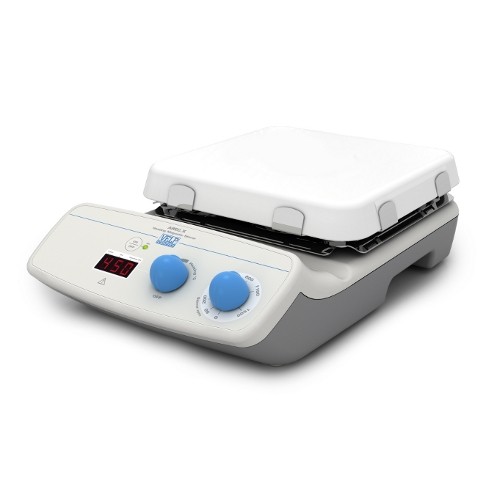

MAGNETIC STIRRER HOTPLATE KIT, INCLUDES AREC.X STIRRER, EXTERNAL TEMP PROBE, SUPPORT ROD + CLAMP
|
Unmatched Operation
- Ceramic heating plate resists acids, bases and solvents
- Technopolymer casing resists chemicals, scratches and surface abrasions
- Maximum temperature 550 °C
- Accepts up to 15 litre flasks
- Electronic speed regulation up to 1500 rpm
Precise Results
- SpeedServo™ ensures constant speed even when the viscosity changes
- Controls to ± 1 °C with probe
Practical Solution
- White ceramic plate ideal for colour change observation
- Metal vessels can be used on the ceramic plate
- Low profile design for a heated model
Safety Above All
- Hot plate warning displayed while cooling to below 50 °C
- Control panel is separated from the heating plate
- IP 42 protection
- Protection from liquid spills with run-off groove
Convenient to Use
- Inclined control panel for easy access and visibility
- High visibility LED display of temperature (on AREC.X)
- High power PCM-type driving magnet
|
|
GENERAL FEATURES
| Construction material: | Technopolymer structure |
| Heating plate: | Ceramic material |
| Dimensions of the heating plate: | 180x180 mm (7.9x7.9 in) |
| Protection rating CEI EN 60529: | IP 42 |
| Set temperature visualisation: | Digital display LED |
| Power: | 800 W |
| Weight: | 3.3 Kg (7.3 lb) |
| Dimension (WxHxD): | 203x94x344 mm (8x3.7x13.5 in) |
|
|
PERFORMANCE
| Electronic speed regulation: | Up to 1500 rpm |
| Electronic temperature control: | From room temp. to 550 °C |
| Sample thermoregulation: | ± 1.0 °C by using external temperature probe |
| Stirring volume (H2O): | Up to 15 litres |
| Stirring system: | High-power driving magnet type ''PCM'' operated by a mono-phase motor for continuous operation |
| Vertex connection: | Provided |
| Counter-reaction: | Constant speed |
| "Hot Plate Warning" | Whenever the top plate temperature is over 50 °C |
|
