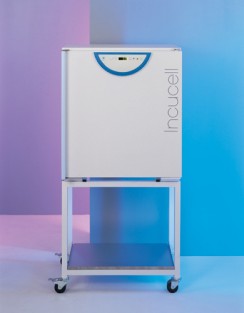

II0037 - INCUCELL V 111 - Comfort
- - Natural, precise – laboratory incubator
- - 111-liter chamber volume
- - Working temperature of from +10°C above ambient up to 99,9°C
- - Patented system of air flow in the chamber ensures quicker and more accurate distribution of the preset temperature in the chamber, which enables ideal heating of the samples
- - High operation comfort, precise temperature regulation and short times of temperature recovery in the chamber after the door opening; the standard equipment includes inner glass door
- - Model with a fan ensures quicker and more accurate distribution of temperature with small deviations; suitable for demanding and accurate tests and samples cultivation
- - Comfort model with a Fuzzy-Logic microprocessor control system; control elements situated on a foil keyboard, process information indicated on a LCD display
- - Wide range of optional equipment and accessories
- - Output for a printer or PC connection
- - Validation possibility (IQ , OQ)
Technical data
Interior of stainless steel material No. 1.4301
- volume 111 l
- depth 370 mm
- width 540 mm
- height 530 mm
Tray
- standard equipment 2 pcs
- storage area (w × d) 520×335 mm
- racks 7 max. number
- distance between guide rails 70 mm
Maximal weight of the load *)
- inside the oven 50 kg/oven
- per tray 20 kg/tray
Door
- 1 pcs
External dimensions (including door and handle)
- depth 640 mm
- diameter of the air branch outer/inner 52/49 mm
- width 760 mm
- height, incl. Feet (N) and Caster (K) 860 (N)
Package dimensions (three layers carton)
- depth 730 mm
- width 830 mm
- depth 1050 mm
Weight
- gross 87 kg
- nett 75 kg
Working temperature (beginning of the regulation)
- from 10 °C above ambient temp. to: 99,9 °C
Temperature accuracy according to DIN 12 880 T2 at working temperature with closed air flap and door
- time variation cca (±) 0,2 °C
- space deviation cca (±) 0,3 °C
Time required to reach 37 °C with closed air flap and voltage 230 V
- 51 min
Heat emission at 37 °C
- 95 W
Air exchange speed at 37 °C
- 49 per hour
Electricity - mains 50/60 Hz
- max. power 0,7 kW
- nominal voltage 230 V
- current 3 A
- power by stand by 5 W
*) Approx. 50 % of the tray area can be filled while allowing uniform air circulation inside the chamber.
Note: All technical data are related to 22 °C of ambient temperature and ±10 % voltage swing rate ventilator 100 %, defrost off, lighting off.
Changes in the design and make reserved.
The values may differ depending on specific charge and media parameters.
