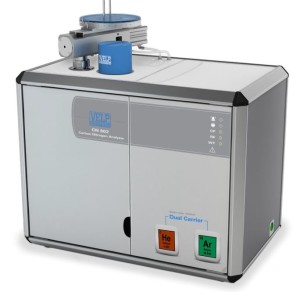

VELP CARBON AND NITROGEN ANALYSER CN802

IA0155







A New Generation of Connected Laboratory Equipment



A versatile and cloud enabled elemental analyser able to perform precise carbon and nitrogen analysis in 3-4 minutes. It is the ideal solution for high throughput offering complete safety to operators.



  • Extremely accurate and precise Carbon/Nitrogen determination in 3-4 minutes

  • Determination of TC, TOC (After acidification), TIC, TN, and Carbon/Nitrogen ratio

  • Helium and Argon as carrier gas

  • Easy to use thanks to the included powerful dedicated software

  • Control and calculation of C:N ratio, reports and real time result graph

  • Designed to work continuously and unattended 24/7

  • Robust design guaranteeing long-term investment

  • Monitor and control the unstrument anytime, anywhere with VELP Ermes cloud platform

  • Compliant to recognised official methods: AOAC, DIN, ISO, EN, CEN, EPA and more.

SPECIFICATIONS

Method of Analysis:Combustion method
Detector: N =TCD (Thermal Conductivity Detector)
C = NDIR (Non Dispersive Infrared Detector)
Carrier Gas:Helium and Argon
Sample weight :Up to 1 g
Nitrogen measuring range:ppm - 200 mgN
Carbon measuring range:ppm - 150 mgC
Analysis time:2-5 min
Autosampler capacity:Up to 4 discs, 30 positions each
Autosampler type:Pneumatic
Reproducibility :< 0.5% for EDTA standards approx. 100 mg
Recovery :> 99.5%
Nitrogen detection limit:0.001 mgN (He); 0.01 mgN (Ar);
Carbon detection limit:0.01 mgC
Combustion temperature:1030 °C / 1886 °F
Helium (He) / Argon (Ar):purity 99.999% (grade 5.0)
Carrier gas pressure2 bar
Oxygen (o2) pressure2 bar
Connectivity:Cloud via LAN or Wi-Fi
Interfaces:USB, RS232, Ermes cloud platform
Power:1400 W
Power Supply:230 V / 50 - 60 Hz
Weight:54 kg
Dimensions:655 x 690 x 410 mm  (including autosampler)
