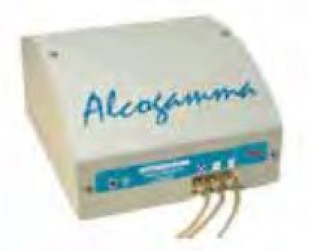

IT0272 ALCOHOL ANALYSER, FULLY AUTOMATIC (NIR), 0-18%+/-0.1% 'ALCOGAMMA' (A11380)

IA0147

Alcohol measuring device on the raw sample.


Fully automatic system for alcohol detection in musts and its derivatives.


The instrument provides ethanol concentration through a NIR (Near Infrared) system, in less than 60 seconds and uses only 40ml of sample.


The NIR system uses a patented spectroscopic analytical technique with multiple wavelengths of the infrared spectrum.


The software interface allows the user to perform the analysis in a very simple way, allowing at the same time the machine to run automatic washing and calibration cycles.

- High accuracy and precision in the analysis
- Response speed (< 60 seconds)
- Easy to use
- Reduced sample volume (40ml)
- No analytical reagent



DETECTED DATA

Alcohol
Total Dry Extract (net)
Potential Alcoholic Degree


TECHNICAL FEATURES

Main Measure:Opto Electric
Measurement range:0 - 18% Vol.
Accuracy:0.1% Vol.
Reproducibility + 0.05% Vol.
Reading time:60 seconds
Sample Volume:40 mL
Operating system:Windows
 Dimensions and weight: 24,5x14,5x28,5cm - 7kg
